Outdoor Duct GYFTY Communication Fibra Optical Optic Fiber Cable

Basic Info.

Model NO.	GYFTY
Connection Structure	SC
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	Multicore
Certification	RoHS, ISO9001, CPR
Brand	OEM
Sheath Material	HDPE
Fiber Type Sm	G652D, G657A1, G657A2, G657b3
Fiber Type mm	Om1, Om2, Om3, Om4, Om5
Product Name	Outdoor Duct GYFTY Communication Fibra Optical Opt
Transport Package	Fumigated Wooden Drum
Specification	8.0mm/9.0mm/10.0mm/11.0mm
Trademark	OEM
Origin	China
HS Code	8544700000
Production Capacity	8000km Per Month

Product Description

Outdoor Duct GYFTY Communication Fibra Optical Optic Fiber Cable

Description

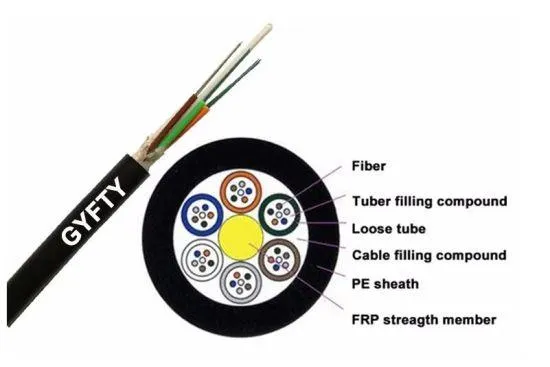

The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

Features
4. How about the warranty? -There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands. 5. Can you produce according to the samples? -Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

·Good mechanical and temperature performance·High strength loose tube that is hydrolysis resistant ·Special tube filling compound ensure a critical protection of fiber·Good crush ability and soft·Adopt the measures below to assure the water-proof function:·single non-metallic central strength member·Special tube filling compound ensure a critical protection of fiber·fully fiber filled

Specifications

Cable Count	Out sheath Diameter (mm)	Weight (kg)	Minimum allowable TensileStrength (N)		Minimum allowable Crush Load (N/100nm)		Minimum Bending Radius(MM)		Storage Temperature (ºC)



			Short term	Long term	Short term	Long term	Short term	Long term
24-60	9.5	65	1500	600	1000	300	20D	10D	~40-+60
72	10.5	85	1500	600	1000	300	20D	10D	~40-+60
96	14.5	145	1500	600	1000	300	20D	10D	~40-+60
144	18.3	185	1500	600	1000	300	20D	10D	~40-+60

Requirement for Order

(1) Fiber sort: Single mode:G652,G657, Multi mode:OM1,OM2,OM3,OM4.
(2) Fiber brand: YOFC, Corning, Fiberhome,OFS etc.
(3) Jacket material: PE,LSZH ( can be required).
(4) The fiber and tube color: according to stranded color, can be required.
(5) Length of cable: generally is 2KM/drum, can be required.
(6) Other requirement: can be negotiated.

Fiber optical Characteristic (after cable)

Fiber type	Attenuation				Bandwidth	Effective modal bandwidth	10 Gb/s Link Length
Conditions	1310/1550nm		850/1300nm		850/	850nm	850nm
Conditions	Typical	Maximum	Typical	Maximum	1300nm	850nm	850nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	MHz.km	m
G652D	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A1	0.5/0.4	0.6/0.5	/	/	/	/	/
G657A2	0.4/0.3	0.5/0.4	/	/	/	/	/
G657B3	0.5/0.4	0.6/0.5	/	/	/	/	/
62.5/125	/	/	3.5/1.0	3.5/1.5	≥160/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
OM1	/	/	3.0/1.0	3.5/1.5	≥200/500	/	/
50/125/	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM2	/	/	3.0/1.0	3.5/1.5	≥500/500	/	/
OM3-150	/	/	3.0/1.0	3.5/1.5	≥700/500	≥950	150
OM3-300	/	/	2.5/0.8	3.0/1.0	≥1500/500	≥2000	300
OM4-550	/	/	2.5/0.8	3.0/1.0	≥3500/500	≥4700	550

Package

FAQ
1. Can I visit you? -Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment. 2. How long is your delivery time? -Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. 3. What is your payment terms? -Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
