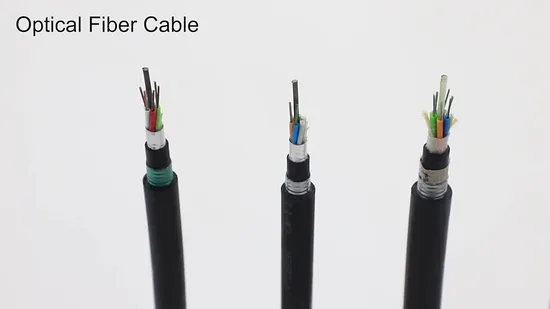

Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53

Basic Info.

Connection Structure	SC
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	Multicore
Certification	RoHS, CE, ISO9001, VDE, CCC
Brand	Surelink
Sheath Material	PE
The Certification	CE/RoHS/ISO9001/Anatel
Jacket	Black Polyethylene (PE)
Central Strength Member	Steel Wire
Fiber Options	G652D ,G657A,Om1,Om2,Om3,Om4
Fiber Count	12-288
Installation Tensile	1500n
Cable Structure	Multi Loose Tube Aluminum Tape Armor
Strength Member	Loose Tube Stranded/Sz Stranded
Transport Package	Wooden Drum
Trademark	SURELINK
Origin	China
Production Capacity	30000km/Month

Packaging & Delivery

Package Size100.00cm * 100.00cm * 50.00cm Package Gross Weight100.000kg

Product Description

Manufacturer 24 48 core fiber optic cable gyta53 underground direct buried fiber optic cable gel filled gyta53 optical cable

Product Description
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with
the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.

Product Construction:
1. Fiber:2-288 fiber Multi-loose tube gel-filled
2. Central Strength Member: Fiberglass reinforced Platic (FRP) or steel wire.
3. Armor:Aluminum Tape Armor
4. Outer Jacket:Black UV Polyethylene(PE)

Features:
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Aluminum tape armor to protect cable from mechanical damage.
UV and waterproof design.

Application:
Interbuilding voice or data communication backbone.
Installed in duct, underground conduit .

Optical Characteristics:

Structure and Technical Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales
people for more detailed information.

Package Details:Iron-wooden drum or fumugated wooden drum,normal wooden drum Drum size can be designed,details will calculation for suitable for containers

Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53

Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees. Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order. Our products have been widely installed in Telecom companies and many distributors around the world. We export to more than 70 countries and our annual revenue is more than hundreds of million USD. We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

OEM and ODM order highly welcome !

Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53

Payment
We usually use T/TT/T deposit before production and balance when shipment.Payment terms: Western Union, Escrow, Paypal, T/T ,L/CShipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS, FEDEX or EMS.For big order,we will ship the goods by air or by sea.

Cable Structure

Technical Parameters

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+ fillers)	Allowable Tensile Load(N)		Allowable Crush Resistance(N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+ fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.3	109	6	6	1500	600	1000	300
38~72	11.5	145	12	6	1500	600	1000	300
74~96	13.5	175	12	8	1500	600	1000	300
98~120	14.8	209	12	10	1700	600	1000	300
122~144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218~288	19.0	325	12	24(2 layers)	2500	600	1000	300
