Underground Direct

Basic Info.

Model NO.	GYTA53 Fiber Optic Cable
Connection Structure	Underground Fiber Cable
Material Shape	Round Wire
Allowed Lateral Pressure	Short Term 3000n; Long Term 1000n
Allowed Tensile Strength	Short Term 3000n; Long Term 1000n
Core	2-288 Core
Certification	RoHS, ISO9001, Reach,Tlc,etc
Brand	Tw-Scie or OEM
Sheath Material	MDPE / HDPE / Lszh PE
Model No	GYTA53 Underground Fiber Cable
Fiber Count	2-288 Core
Brand Name of Fiber	Corning ,Yofc,Draka, Fujikura...as Your Requiremen
Loose Tube Material	PBT
Loose Tube Filling Material	Jerry
Color of Loose Tube	Orange,Green , Brown,Red etc
Central Strength Member	Steel Wire or FRP
Double Armour Material	Corrugated Steel and Aluminium Tape
Core Moisture Protection Methodology	Water Blocking Tape or Filling Compound
Installation Style	Direct-Burial and Duct
Transport Package	Wooden Drum
Specification	SGS ROHS REACH ISO
Trademark	TW-SCIE or OEM
Origin	Dongguan, Guangdong, China (Mainland)
HS Code	854470000
Production Capacity	200km/Day

Product Description

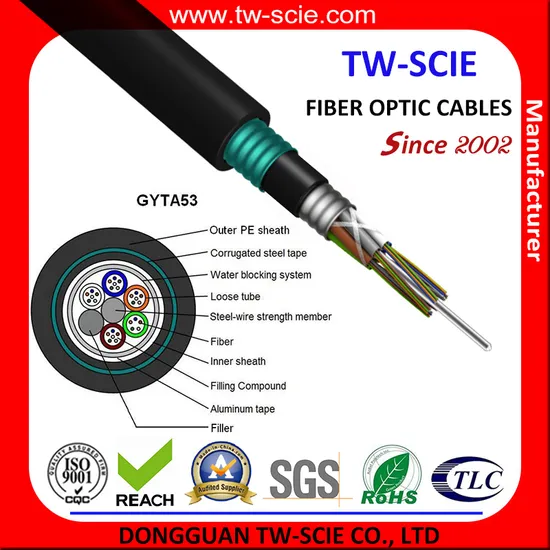

Underground Direct-Burial Fiber Optic Cable GYTA53

GYTA53 Underground Direct-Burial Fiber Optic Cable Details:

Product Description
This GYTA53 Optical Fiber Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.

Features & Application:
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible bending radius
Long haul / backbone application

Optical Fiber Technical data:

Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1.Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.

Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate

Contact with us for latest quotation freely.

Underground Direct-Burial Fiber Optic Cable GYTA53

Technical data:
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Min.Bending radius(mm)		Tension (N)		Crash loading (N/100mm)
Fiber Num.	Outer diameter (mm)	Weight (kg/km)	Static	Dynamic	Short term	Long term	Short term	Long term
2-24	13.3	210	12.5 times O.D.	25 times O.D.	3000	1000	3000	1000
26-36	13.6	220
38-60	14.1	225
62-72	14.6	255
74-96	16.2	305
98-120	17.7	350
122-144	19.1	395
146-216	19.6	420
218-240	22.8	530
242-288	25	620
