Factory Price Duct/Direct Buried Outdoor Multi Loose Tube Layer Stranded Armored Fiber Optic Cable GYTA53

Overview
Packaging & Shipping
Company Tour - workshop
Certifications
Our Advantages
FAQ

Overview

Basic Info.

Model NO.	GYTA53
Connection Structure	Splice
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	Multicore
Certification	RoHS, CE, ISO9001, VDE, CCC
Brand	OEM
Sheath Material	MDPE / HDPE
Outdoor Fiber Optic Cable	GYTA53
Strength Member	Steel
Armor	Al P+PSP
Fiber Counts	2-144 Fibers
Sheath	Double Layer
Transport Package	Iron Steel/Wooden Reel
Specification	2/3/4/5/6km
Trademark	SHG or OEM
Origin	China
HS Code	8544700000
Production Capacity	10000km Per Month

Packaging & Delivery

Package Size110.00cm * 110.00cm * 86.00cm Package Gross Weight860.000kg

Product Description

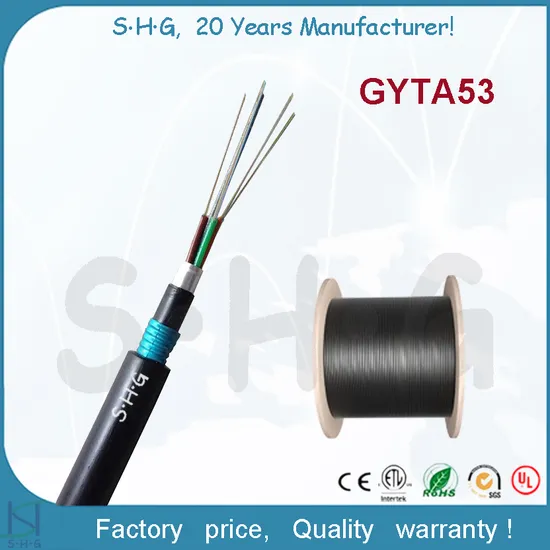

The SHG Duct/Direct buried Outdoor Multi Loose Tube Layer Stranded armored Fiber Optic Cable GYTA53, 2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking tape, aluminum polythene laminated applied around the inner core, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath.

Factory Price Duct/Direct Buried Outdoor Multi Loose Tube Layer Stranded Armored Fiber Optic Cable GYTA53

Features:
1) Low dispersion and attenuation
2) Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3) The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
4) With small cable diameter, light cable weight, easily to lay
5) Operating Temperature: -40~+60C degree

Characteristics:

Package

> 2 / 3 / 4 / 5 km/wooden reel or iron steel reel > other requirement upon request.Special packing acceptable , upon customers requirements!

Workshop view

Certificates

ISO9001:2008, CE, RoHS, REACH

Factory Price Duct/Direct Buried Outdoor Multi Loose Tube Layer Stranded Armored Fiber Optic Cable GYTA53

Why Choose us

Q1: Are your company factory? SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.

Q2: Do you company offer OEM service? SHG: Yes! OEM available, your logo & reference on products & package available. Q3. What's your products lead time? SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received).

Q4. Where is your nearest sea-port and airport?
SHG: The nearest sea-port is Ningbo, Shanghai. The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge. Q5. What's your Payment Term?
SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method. Q6. Quality and Reputation:
SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.

Fiber count	Cable dia. (mm)	Cable net Weight (Kg/km)	Min. Bending Radius (mm)			Min. Tensile Strength (N)			Min. Crush Pressure (N/100mm)
			Static state	Dynamic state	Short term		Long term	Short term		Long term
-36	15.5	235	160	320	3000		1000	3000		1000
38-48	16.1	255	170	340	3000		1000	3000		1000
50-72	17	288	170	340	3000		1000	3000		1000
74-84	17.8	311	180	360	3000		1000	3000		1000
86-96	18.6	335	190	380	3000		1000	3000		1000
98-108	19.4	358	200	400	3000		1000	3000		1000
110-120	20.6	367	210	420	3000		1000	3000		1000
122-132	21.4	422	220	440	3000		1000	3000		1000
134-144	22.2	451	230	260	3000		1000	3000		1000
