Asu FTTH Drop Cable 2

Basic Info.

Model NO.	ASU
Certification	CE, ISO, RoHS, GS
Condition	New
Single Gross Weight	0.100 Kg
Length	Customizable
Use	Network Communications
Crush(Short Term)	1000n/10cm
Selling Units	Single Item
Network	5g
Installation Temperature	-20~+50
Single Package Size	0.5X0.5X100cm
Crush(Long Term)	300n/10cm
Transport Package	Shipping Box or Wooden Pallet
Specification	2/4/6/8/10/12/14/16/18/20/24 cores
Trademark	ExactCables
Origin	Zhejiang

Product Description

Asu FTTH Drop Cable 2-24 Core Central Strength Member Fiber Optic Cable

Name: ASU Fiber Optical Cable

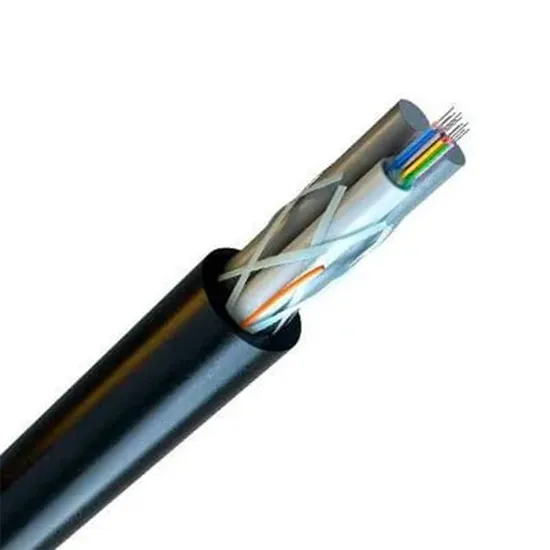

Exactcables' Mini Adss ASU Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watering. Two Parallel fiber-reinforced plastic(FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.Exactcables can customize the number of cores of ASU Fiber Optic cables according to customer needs. The number of cores of mini ADSS Cable is 2,4,6,12 up to 24 cores.

Asu FTTH Drop Cable 2-24 Core Central Strength Member Fiber Optic Cable

The ASU fiber optic cable is covered with a single PE outer sheath. Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides.

Asu FTTH Drop Cable 2-24 Core Central Strength Member Fiber Optic Cable

ASU fiber optic cable adopt proven all-dielectric loose tube construction. This fiber optic cable adopt round cable profiles minimize wind and ice loading. The ASU Fiber optic cable is stable and compact in structure, and also has excellent performance in other performances such as crushing, impact, and torsion, and conforms to the existing technical standards for outdoor overhead optical cables. All Dielectric Self Supporting Cable adopts all-dielectric structure design, which can avoid potential safety hazards caused by power lines or lightning.

Applications of ASU Fiber optic Cable

AUS Aerial fiber optic cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for short-distance communication. The pole span no more than 120m. ASU Aerial Cable with small span is an important part of the distribution line, ASU optical cables are erected on the original towers of power lines, and have become the first choice of special optical cables for power system networking

Asu FTTH Drop Cable 2-24 Core Central Strength Member Fiber Optic Cable

Packaging
Multiple packaging options are available.

Part code	ASU-80-6F
Number of Fibers	Unit	6	8	12	24
Number of fiber in tube	Nos	6	8	12	24
Number of loose tube	Nos	1	1	1	1
strength member	Material	FRP 2x1.8mm	FRP 2x1.8mm	FRP 2x1.8mm	FRP 2x1.8mm
Loose tube	Material	PBT
	Size	2.2mm
Outer sheath	Material	HDPE	HDPE	HDPE	HDPE
Cable nominal Diameter	MM ±0.2	6.5	6.5	6.5	6.5
Cable nominal weight	Kg/Km ±5	41	41	41	43
Max. working tension	N	1200	1200	1200	1200
Max. crush resistance	N	1000 (Short term) / 600 (Long term)
Min. bending radius		At full load 20 x Cable OD (including poles) At no load 15 x Cable OD
Temperature range		Installation -0 -> +50 Operation -10 -> +70
10	Macro-Bending Loss	1turn×10mm radius @1550nm		dB	≤0.75
		1turn×10mm radius @1625nm		dB	≤1.5

fiber type	Attenuation				(OFL)	Numerical Aperture	Cable Cut-off Wavelength(λcc)
Condition	1310/1550nm		850/1300nm		850/1300nm
Condition	Typical	Max	Typical	Max	850/1300nm
Unit	dB/km	dB/km	dB/km	dB/km	MHz.km	-	nm
G652	0.35/0.21	0.4/0.3	-	-	-	-	≤1260
G655	0.36/0.22	0.4/0.3	-	-	-	-	≤1450
50/125	-	-	3.0/1.0	3.5/1.5	≥500/500	0.200±0.015	-
62.5/125	-	-	3.0/1.0	3.5/1.5	≥200/500	0.275±0.015	-

Test	Test Method	Acceptance Condition
Tensile Strength	Load 1500N (2000N) for 10 minutes Variation of attenuation: ≤0.1dB Fibers strain: ≤0.33%	IEC 60794-1-2-EIA IEC 60794-1-2-EIB IEC 60794-2-50
Crush Test	Load 2000N for 3 minutes Variation of attenuation≤0.1dB	IEC 60794-1-2-E3 IEC 60794-2-50
Impact Test	Energy=1 J on the surface of 12.5mm radius, 3 timesVariation of attenuation≤0.1dB	IEC 60794-1-2-E4 IEC 60794-2-50
Temperature Cycling Test	Range -40°/+70°@1550nm Variation of attenuation≤0.1dB	IEC 60794-1-2-F1 IEC 60794-2-20
