Aerial Fibra Optica Figure 8 Fiber Optic Cable
Figure 8 self-support fiber cable GYTC8S Application: The fiber cable cables are suitable for installation in aerial env
Description
Basic Info.
| Model NO. | fiber cable |
| Connection Structure | Fiber Cable |
| Material Shape | Fiber Cable |
| Allowed Lateral Pressure | Fiber Cable |
| Allowed Tensile Strength | >10000N |
| Core | Multicore |
| Certification | RoHS, CE, ISO9001, Fiber Cable |
| Brand | Fiber Cable |
| Sheath Material | Fiber Cable |
| Product Name | Fiber Cable |
| Jacket Material | Black PE |
| Messenger Material | Steel Wires |
| No. of Messenger | 7 |
| Outer Diameter | 15.5mm |
| Span | 150meters |
| Armored Material | Steel Tape Armored |
| Installation Method | Aerial Installation |
| Lead Time | 5-7days |
| Packing Length | 3000m/Drum |
| Transport Package | Wooden Drum |
| Specification | GYTC8S |
| Trademark | TW-SCIE or OEM |
| Origin | Dongguan China |
| HS Code | 8544700000 |
| Production Capacity | 150km/Day |
Product Description
Figure 8 self-support fiber cable GYTC8SApplication:
The fiber cable cables are suitable for installation in aerial environment for long haul communication.
Features:
1. Up to 288 fiber cable.
2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.
3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.

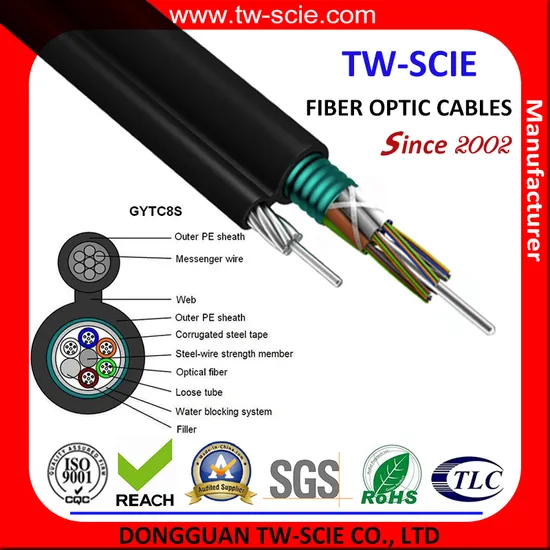

4. Cross section shows fiber cable.
5. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.
| fiber cable Technical data: | ||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min. bend radius | Max. Running tension (N) | Safe running tension (N) | Min. Breaking tension (N) | Max. crush loading (N/100mm) | ||
| Static | Dynamic | Short term | Long term | |||||||||
| 2-30 | 1× 7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 10times cable diameter | 20times cable diameter | 7000 | 3500 | 15550 | 2000 | 1000 |
| 32-36 | 10.3 | 19.3 | 230 | |||||||||
| 38-60 | 10.7 | 19.7 | 230 | |||||||||
| 62-72 | 11.3 | 20.3 | 255 | |||||||||
| 74-96 | 12.9 | 21.9 | 290 | |||||||||
