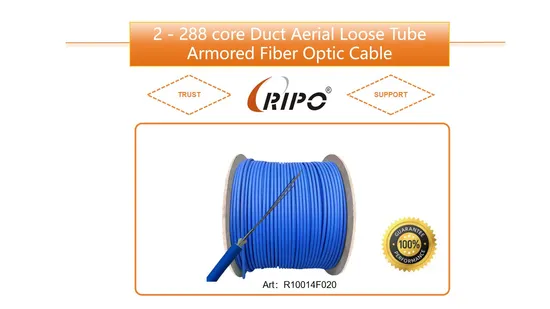

2 Core
Description
- Overview
- Product Description
- Detailed Photos
- FAQ
Basic Info.
| Connection Structure | SC |
| Material Shape | Round Wire |
| Allowed Lateral Pressure | >1000(N/100mm) |
| Allowed Tensile Strength | 1000N<10000N |
| Core | Double Core |
| Certification | RoHS, CE, ISO9001, CCC |
| Brand | Ripo |
| Sheath Material | PE or Lzsh |
| Sample | Free Sample, Freight Charged Only |
| MOQ | 100 Meters |
| Inspection | Accept Third Party Inspection |
| Conductor | Tinned Copper |
| Insulation | XLPE PE PVC |
| OEM ODM | as Per Customer Request |
| Material | PVC+Copper |
| Product Name | Copper Conductor PVC/XLPE Insulation Swa Armoured |
| Transport Package | Wooden Drum |
| Specification | 4x50mm2 |
| Origin | China |
| HS Code | 8544492100 |
| Production Capacity | 8000000meters/Month |
Product Description
Features and Benefits:
- Good flame retardant performance.
- High strength loose tube that is hydrolysis resistant.
- Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
- Loose tube wrapped by non-weaven tape has the water blocking ability.
- Special tube filling compound ensure a critical protection of fiber.
- Blue PVC jacket: Flame retardant, the blue color is easy to identify.
- Crush resistance and flexibility.
Structions
Optical Fiber Characteristics
Single mode
Multi mode
Mechanical and Environmental performance:
1. Q:Are you a factory or trading company? A: We are a factory.2. Q:Where is your factory located? How can I visit there? A: Our factory is located in Guangdong, China.You can fly to Shenzhen airport directly. We welcome you to visit our factory.3. Q: Why choose your factory for service?A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.4. Q:How does your factory do regarding quality control? A: "Quality first, customers foremost". We always attach great importance to quality controlling from the very beginning to very end. 5. Q: What is your company mainly produce?A: drawing machine series, Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.
Product Description
| Items | Descriptions | |
| Optical fiber | Category | SM / MM |
| Count | 2-432 | |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink,Aqua | |
| Loose tube | Material | PBT |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink,Aqua | |
| Infilling | Fiber jelly | |
| Possible filler | Material | PP |
| Center strength member | Material | Steel wire / FRP |
| Inner sheath | Armored layer | Aluminum tape |
| Material | PE / Black | |
| Outer sheath | Armored layer | Corrugated steel tape |
| Material | PE / Black | |
| Category | G652D (1310nm/1550nm) | G657A1 (1310nm/1550nm) | G657A2 (1310nm/1550nm) | |
| Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
| Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
| Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
| Chromatic dispersion(1285-1340nm) | -3.5-3.5ps/(nm·km) | -3.5-3.5ps/(nm·km) | -3.5-3.5ps/(nm·km) | |
| MFD(@1310nm) | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
| Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
| Min bending Radius | 16mm | 10mm | 7.5mm | |
| Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
| Category | 62.5/125μm (850nm/1300nm) | 50/125μm (850nm/1300nm) | BIOM3 (850nm/1300nm) | BIOM4 (850nm/1300nm) | |
| Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
| Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
| Bandwidth(MHz·km) | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
| Effective mode bandwidth(MHz·km) | --/-- | --/-- | ≥2000/-- | ≥4700/-- | |
| Min bending Radius(mm) | 30 | 30 | 7.5 | 7.5 | |
| Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
| Items | Descriptions | |
| Long-term | Short-term | |
| Tensile performance | 1000N | 3000N |
| Crush resistance | 1000N/100mm | 3000N/100mm |
| Min bending radius("D" is the diameter of the cable) | Static:10D | |
| Dynamic:20D | ||
| Installation temperature | -20ºC~+60ºC | |
| Operation temperature | -40ºC~+70ºC | |
| The mechanical properties of other optical fibers and optical cables shall meet the international standards of IEC60793 or IEC60794 | ||
Detailed Photos
Ripo is one famous brand of cable&wire making machines in the world. We push the brand from local to international market since 10 years ago. Up to now, we have moer than 15000 sqm plants to produce many kinds of cable making machines like copper wire drawing machines; plastic Extruder, wire branding machines; auto coiling machines etc. We are located in Dongguan city, it is no far from Guangzhou and Shenzhen, every year we treat a lot of customers from more than 70~ 80 countries.
