Description
- Overview
- Product Description
- Detailed Photos
- FAQ
Basic Info.
| Connection Structure | Gyfxtby |
| Material Shape | Round Wire |
| Allowed Lateral Pressure | >1000(N/100mm) |
| Allowed Tensile Strength | 1000N<10000N |
| Core | Double Core |
| Certification | RoHS, CE, ISO9001, CCC |
| Brand | Ripo |
| Sheath Material | PE or Lzsh |
| Sample | Free Sample, Freight Charged Only |
| MOQ | 100 Meters |
| Inspection | Accept Third Party Inspection |
| Conductor | Tinned Copper |
| Insulation | XLPE PE PVC |
| OEM ODM | as Per Customer Request |
| Material | PVC+Copper |
| Product Name | Copper Conductor PVC/XLPE Insulation Swa Armoured |
| Transport Package | Wooden Drum |
| Specification | 4x50mm2 |
| Origin | China |
| HS Code | 8544492100 |
| Production Capacity | 8000000meters/Month |
Product Description

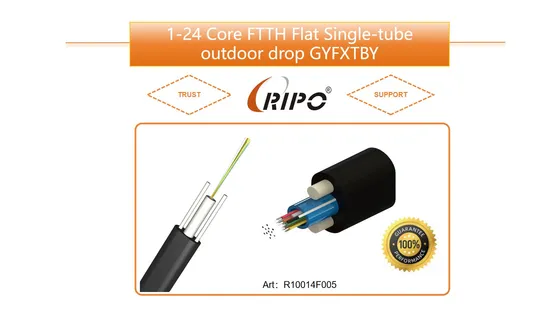

GYFXTBY fiber optic cable is an arc runway fiber cable, which is made of multiple( 1-24 cores ) 250um
colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.
Feature:
- Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
- PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
- Fiber optic cable is non-metallic structure. light weight, easy laving,. ant-electromagnetic, lightning protection effect is better
- Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
- Compared with butterfly. shaped optical cable. runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
- improve the construction efficiency
- Easy to peel, reduce the time of pulling out the outer
- It has the advantages of corrosion resistance.UV protection and environmental protection
Structure
Optical fiber characteristics:
Single mode
Multi mode
Mechanical and Environmental performance:
1. Q:Are you a factory or trading company? A: We are a factory.2. Q:Where is your factory located? How can I visit there? A: Our factory is located in Guangdong, China.You can fly to Shenzhen airport directly. We welcome you to visit our factory.3. Q: Why choose your factory for service?A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.4. Q:How does your factory do regarding quality control? A: "Quality first, customers foremost". We always attach great importance to quality controlling from the very beginning to very end. 5. Q: What is your company mainly produce?A: drawing machine series, Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.
Product Description
| Items | Descriptions | |
| Optical fiber | Category | SM / MM |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Violet,Pink,Aqua | |
| Loose tube | Material | PBT |
| Color | Natural | |
| Tube filling | Fiber jelly | |
| Strength member | FRP | |
| Water-blocking material | Water-blocking yarn | |
| Ripcord | 1Pcs | |
| Outer sheath | Material | PE |
| Color | Black | |
| Category | G652D (1310nm/1550nm) | G657A1 (1310nm/1550nm) | G657A2 (1310nm/1550nm) | |
| Attenuation | Typical | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km | 0.36dB/km/0.22dB/km |
| Max | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | 0.4dB/km/0.3dB/km | |
| Zero dispersion slope | ≤0.091ps/km·nm2 | ≤0.092ps/km·nm2 | ≤0.092ps/km·nm2 | |
| Chromatic dispersion(1285-1340nm) | -3.5-3.5ps/(nm·km) | -3.5-3.5ps/(nm·km) | -3.5-3.5ps/(nm·km) | |
| MFD(@1310nm) | 9.2±0.4μm | 8.8±0.4μm | 8.8±0.4μm | |
| Cut-off wavelength | ≤1260nm | ≤1260nm | ≤1260nm | |
| Min bending Radius | 16mm | 10mm | 7.5mm | |
| Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
| Category | 62.5/125μm (850nm/1300nm) | 50/125μm (850nm/1300nm) | BIOM3 (850nm/1300nm) | BIOM4 (850nm/1300nm) | |
| Attenuation | Typical | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km | 3.0dB/km/1.0dB/km |
| Max | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | 3.5dB/km/1.5dB/km | |
| Bandwidth(MHz·km) | ≥200/≥500 | ≥500/≥500 | ≥1500/≥500 | ≥3500/≥500 | |
| Effective mode bandwidth(MHz·km) | --/-- | --/-- | ≥2000/-- | ≥4700/-- | |
| Min bending Radius(mm) | 30 | 30 | 7.5 | 7.5 | |
| Cladding diameter | 125±1.0μm | 125±1.0μm | 125±1.0μm | 125±1.0μm | |
| NO. | Items | Short-term | Long-term |
| 1 | Tensile performance | 1250N | 600N |
| 2 | Crush resistance | 1000N/100mm | 300N/100mm |
| 3 | Min bending radius("H" is the height of the cable) | Static:10H | |
| Dynamic:20H | |||
| 4 | Installation temperature | -20ºC~+60ºC | |
| 5 | Operation temperature | -40ºC~+70ºC | |
| The mechanical properties of other optical fibers and optical cables shall meet the international standard of IEC60793 or IEC60794 | |||
Detailed Photos
Ripo is one famous brand of cable&wire making machines in the world. We push the brand from local to international market since 10 years ago. Up to now, we have moer than 15000 sqm plants to produce many kinds of cable making machines like copper wire drawing machines; plastic Extruder, wire branding machines; auto coiling machines etc. We are located in Dongguan city, it is no far from Guangzhou and Shenzhen, every year we treat a lot of customers from more than 70~ 80 countries.
